I dont know why, but I do feel like this car would be so much nicer if stock. but nice work



almost any car with bbs chs look amazing



Serious project. Any pictures of the turbo and exhaust manifold setup? What fuel are you feeding this beast?



Jesus how many bmws do you own

Sent from BimmerApp mobile app



turbo manifolds

fuel: alcohol since 2009.


Just upgraded injectors from 212 lb Siemens injectors to Moran 325 lbs as we will raise the boost.

During my 4,23 s and 4,49 s 60-130 runs boost pressure was 35 psi. Will go up to 60 psi of boost pressure.


Below is one of my dream projects, cancelled it, VERTICAL S50 B32.

This would allow a single GT4788 to be mounted w/o cutting the M3.

Cut, rotated and welded the transmission and was going well.

We did abort this vertical Project back in 2007. Then twin turboed the same m3 with GTX30s.

Mitch,

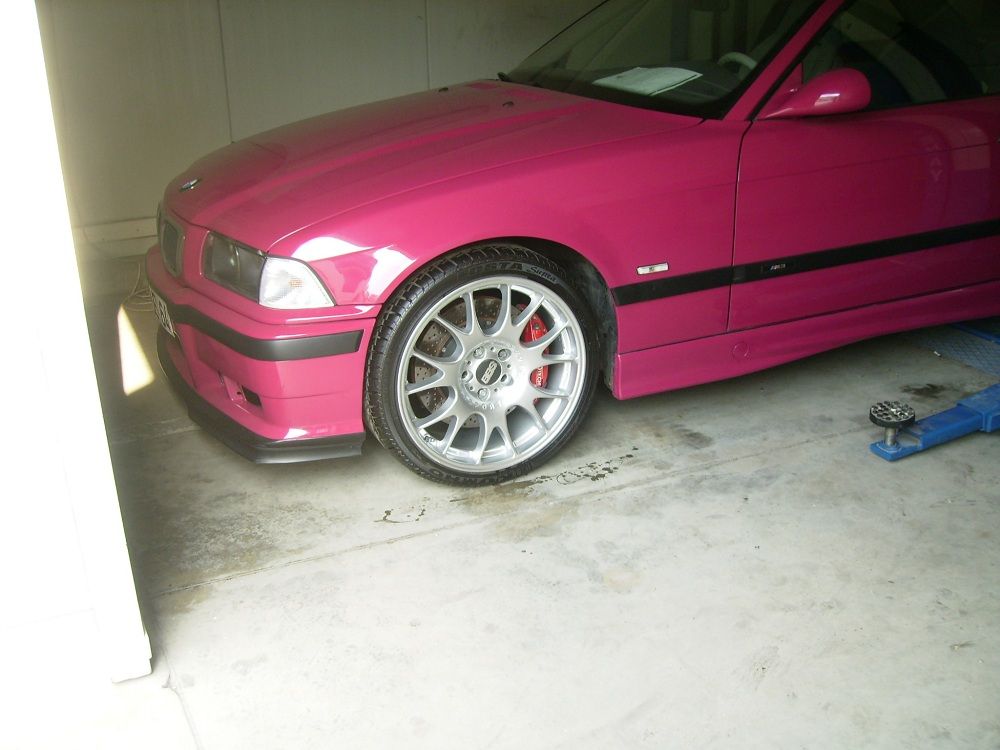

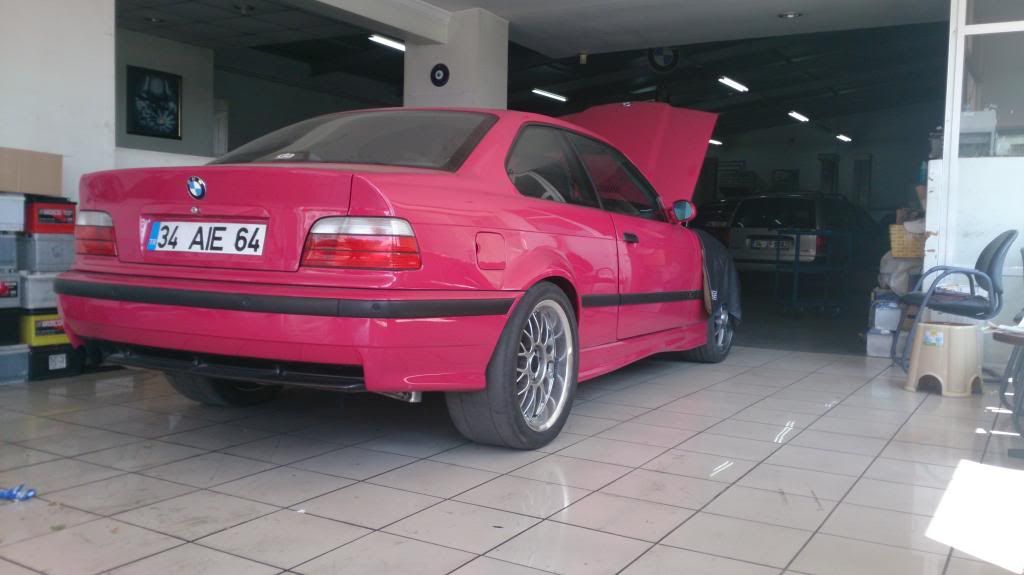

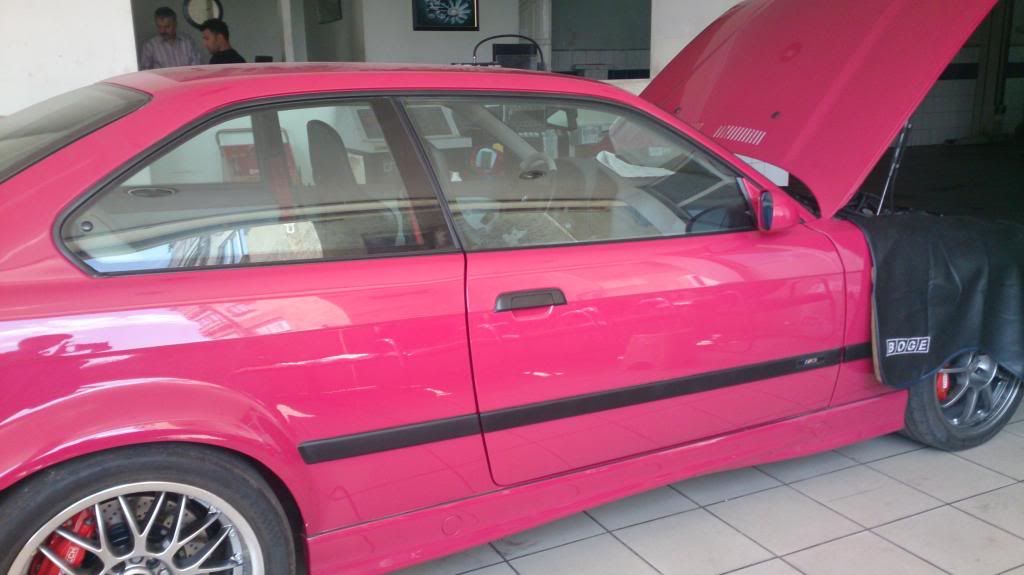

E36 M3 Euro Twin Turbo, fashionred, this one.
E36 M3 Euro Twin Turbo, dakar gelb
XM3 E46 Twin Turbo, all Wheel drive
E46 M3 Coupe, single 6766 & twinscrew under construction

These are modified M3s I got.



Sick sick E36, not my choice of colors but serious respect for this car.



You should see the fashionred in person.

Did you say you like DAKARGELB, so do I.

I have another S50 B32 twin turbo, in dakargelb. 65.000 miles, very clean.

Twin GT22 turbochargers. 320 whp on dyno Dynamics, 370 whp dyno jet. Stock S50 B32. I built this twin turbo / stock S50 B32 kit back in 2006.



post some vids man stop being such a god damned tease



Now thats a good looking E36. Ship the twin turbo system out to Canada so I can drop it on to my S52



If you only knew, lol

Sent from my Galaxy Nexus using BimmerApp mobile app



Great spelling and grammar in this thread.



LittleBIGGturbo,

Sven bough the kit from someone else, not directly from me.

My kit may have been altered before Sven acquired it.

Can you also tell us how many times Svenn damaged his engine?

Sven fabricated his own manifolds, yes.

Then started playing with the settings. And he had multiple engine issues.

One of his friends, an engineer in United Kingdom, mapped his M3, and that was their 1st engine damage.

Then they raised boost, did various modifications to my kit, to his engine, and failures continued.

Go over b.forums and read his threads, at least 20 threads asking for help due to changing the kit, due to mapping by his own.

My Dakargelb M3, used to belong to my friend, he drove the same twin turbo S50 B32 kit 5000 miles w/o issues. This kit was on low boost 9-10 psi.

Before you attack, you should have studied your lesson.



First road test of E36 M3 Euro TT

Tested new setup.

With very rich AFR 10,2-10,4 & 29 psi of boost pressure:

60-100 mph 1,87 seconds. We have very good traction.

My old 4,23 s 60-130 run had 2,40 s 60-100 mph time.

The new setup improved 60-100 mph by 0,53 s.

Tested new tires and 6 speed automatic transmission.

Sub 2 seconds 60-100 mph indicates 3,xx seconds 60-130.

Was not able to hit 130 mph, but old records show 1,75 s 100-130 mph.

Hope to see 60-130 mph in 1,87 + 1,75 = 3,62 seconds in the coming days.

100-190 km/h 3,07 seconds.

29 psi is "soft" boost, raise it 45 psi and test



Please post some videos of this car I would love to watch and listen to it!.



vbox video lite purchased, on its way.

nice videos will be captured, 60-130 times will be on the same video screen.



New dash from Cosworth on its way.



Mert, did you try to put 305/30R19 tires on the M3 E46?
I'm looking to increse tire size...

Sent from my GT-I9505 using BimmerApp mobile app



Cipri,

My E46 M3 runs on 315-30-18 Hoosiers.

Had to work on fenders.

Dont bother with 19" wheels.



Cipri,

there is no need to go to 315.

305 will be more than enough if you set the car perfectly. Wider does not mean more traction.



Took a 10 day vacation.

Back to real life, and keep on working on E36 M3 Euro TT and XM3 TT

E36 M3 Euro cut out fabrication, welding is finished.
Twin 3" straight aluminium pipes go into a muffler, and right before the muffler cut outs are installed.

Custom made S50 B32 camshafts arrived, could not install them as they required different shims. We will get new shims made, heat treated.
The new cams "may" improve spool and "may" add more power from 7800 till 9200 rpm.

These are the shims that we have now and that dont fit....

While I work on M3s, my 23 moths old son Works on his V8 domestic car

He likes XM3 as well



Sweet except for automatic swap :hmm:


Sent from BimmerApp mobile app



Thanks, but think so:

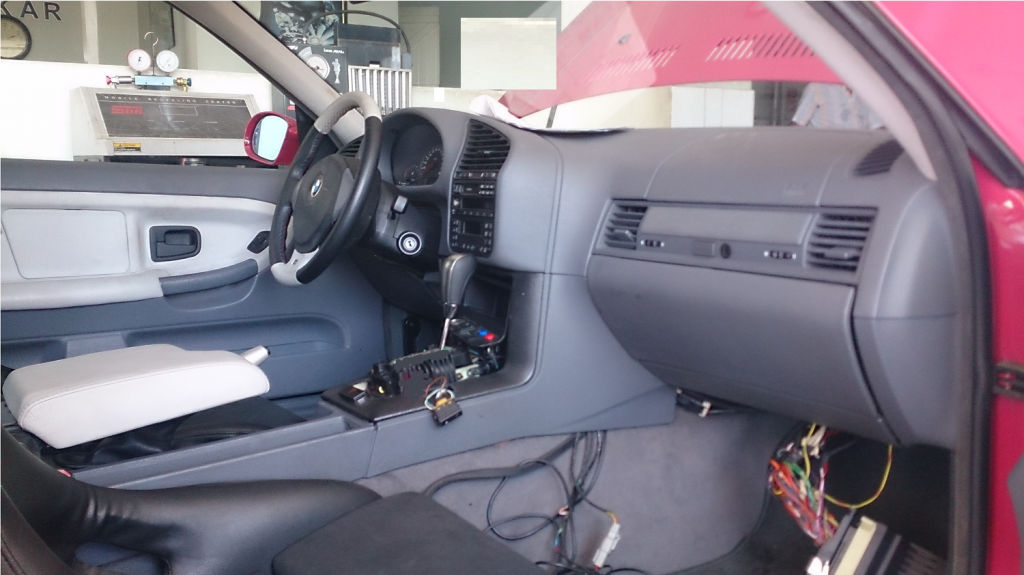

AUTOMATIC TRANSMISSION

- shifts as fast as a modified Nissan GTR 35 or a Ferrari Italia.
- gear shift speeds are user programmable

- zero loss of boost drop during gear changes. Faster 1/4 mile times, faster 60-130 times

- hands are always on steering Wheel, more control of the car, no need to use right hand for gear shifts.

- No more stress in traffic. Just put in "D" you will be happy. Left leg rests, transmission does it all for you.



What transmission you use Mert?



Cut out 1 & 2's fabrication and welding finished ( S50 B32 Twin Turbo)

Twin 3" aluminium pipes go from twin GTX3076 into a Supersprint back box. Cutouts are welded in between.

I designed a new intake manifold, new runners etc, we are fabricating and welding the new box. Hope to road test next week.



Nice y did you install cut outs? Do u need a muffler for something?



Intake manifold kept on leaking and leaking, time to fab a new intake manifold.

S50 B32 Intake Manifold is almost finished



I spy holes on top of manifold...
