Discussion Starter · #1 · (Edited)
Vehicle Overview:
SP Built S54 Short Block
Factory Head and Cams
L19 Head Studs
BMW Factory Head Gasket
Saad Racing Turbo Kit
Saad Racing Intake Manifold w/ LS3 Drive-by-Wire Throttle Body
Saad Racing Fuel System w/ Twin Fuel Injector Clinic 1100cc Fuel Injectors
SP 3" Boost Activated O-Ring Exhaust Cutout
Custom Direct-Port Nitrous Kit (not used yet)
ProEFI Pro128 Flex Fuel Standalone EMS
Saad Racing/ProEFI Ignition System
OS Giken Twin Disc Clutch


PTE 6766 CEA Results:

6766 CEA Various Boost Levels (HP only):
678whp @ 18psi (no torque or RPM readout available)
740whp 624wtq @ 23psi
859whp 710wtq @ 29psi




6766 CEA (HP and TQ shown):
859whp 710wtq @ 29psi



http://www.youtube.com/watch?v=6SFnMcFZ8pc



PTE 6870 CEA GEN2 Results:

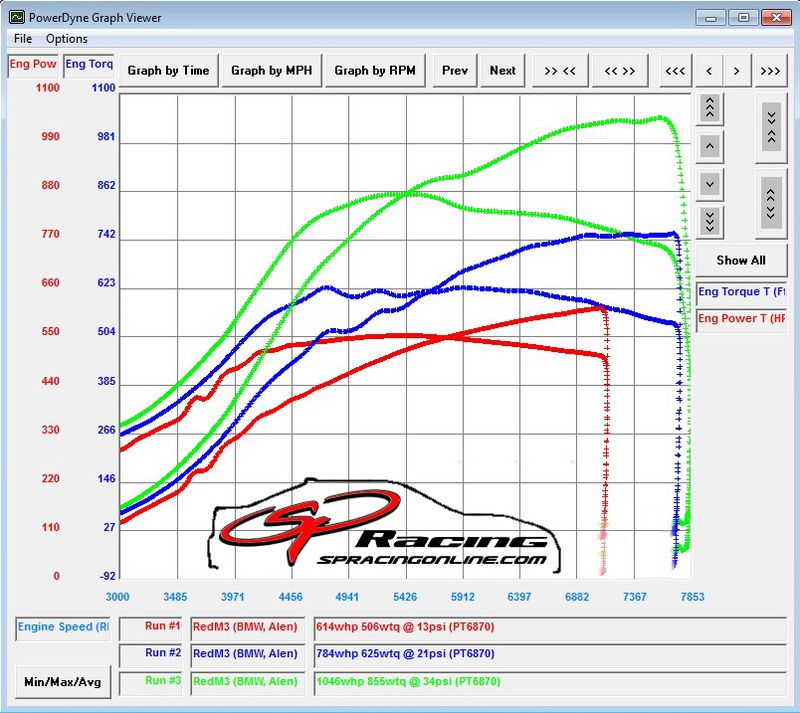

6870 CEA GEN2 Various Boost Levels (HP and TQ shown):
614whp 506wtq @ 13psi
784whp 625wtq @ 21psi
1046whp 855wtq @ 34psi




6870 CEA GEN2 (HP and TQ shown):
1046whp 855wtq @ 34psi



http://www.youtube.com/watch?v=8fBcqRn2b_Y



Compare:

**Note: This is definitely not an apples-to-apples comparison. We pushed the car harder running higher boost levels once the 6870 was put on. We're just showing a ball park of how both turbos size up against one another.



·
Registered
Joined
·
155 Posts
614whp 506wtq @ 13psi
784whp 625wtq @ 21psi 6870 e70
967whp 738wtq @ 31psi

678whp xxxwtq @ 18psi
740whp 624wtq @ 23psi 6766 e52
859whp 710wtq @ 29psi

Good info here, but not apples to apples. Would love to see same fuel/boost. Thanks for posting:thumbup:


·
Registered
Joined
·
72 Posts
We have tested these turbos on the same car with same fuel etc while the car was never unstrapped from dyno. The 6870 makes about 100 more hp than a 6766 and the lag difference is 125 rpm FYI


·
Registered
Joined
·
155 Posts
What is the AR of these turbos? Divided or undivided housings? Just trying to account for all the other variables that may not have been displayed. No doubt the 68 is making good power. QSV on this car?


·
Registered
Joined
·
81 Posts
Discussion Starter · #8 ·
What is the AR of these turbos? Divided or undivided housings? Just trying to account for all the other variables that may not have been displayed. No doubt the 68 is making good power. QSV on this car?
No QSV on here, we couldn't fit it. Both turbos has T4 undivided .81 A/R housings.


·
Registered
Joined
·
81 Posts
Discussion Starter · #10 ·
Thank you, that car is a beast.:thumbup: I remember you doing a QSV on one of these cars, what exhaust manifold was used to get the QSV to fit?
That was on an FSR manifold. I remember it being a really tricky thing and we didn't end up keeping it on there. We also had to modify the QSV quite a bit. We'll see if we can work something up in future builds. The QSV is really a huge help!


·
Registered
Joined
·
155 Posts
That was on an FSR manifold. I remember it being a really tricky thing and we didn't end up keeping it on there. We also had to modify the QSV quite a bit. We'll see if we can work something up in future builds. The QSV is really a huge help!
Any insight on where the clearance issue is/was? I assume it was the block? The nitrous can be used for spool and other things. :evil: Is it worth having a qsv with nitrous?


·
Registered
Joined
·
44 Posts
Pure sickness! Great to see another Saad / Proefi build throwing up insane numbers.
