Discussion Starter · #1 · (Edited)
I just got done replacing my broken window regulator today after it had been showing signs it was on it's way out for the last year. It would make a pop noise when it would start to roll down and the cable was creaking noticeably louder toward the end, like a guitar string binding on metal sound.

At first I was skeptical about doing this myself but started screwing with things and honestly this wasn't very hard at all, took me about an hour or so by myself. I want to thank BBB543 for his writeup here: http://forum.e46fanatics.com/showthread.php?t=513549&highlight=coupe+window+regulator

It was very helpful, I took some pics while I was doing it to expand on his writeup a little and clarify a few steps that confused me.

First take the door panel off. There are 5 Torx screws. 3 are under the armrest and are obvious. One is behind the door handle covered by a circle plug - I used the tip of a knife to pry the plug out then unscrewed it. The other is behind the 'Airbag' symbol - I used a flathead to carefully pry this off then unscrewed it. Once all the screws are out, pry the door panel outwards toward you. Start at the bottom and work up to the top. The whole thing pulls outward.



Once it's off, disconnect the speaker clips and unhook the door cable clip by the door handle. Set it aside. Then on the door unscrew the 2 Torx screws holding on the little black box for the mirror and unclip the 2 plugs that goto it (push down on the tab then move the lever back till it clicks). Start to carefully remove the vapor barrier, use a knife to help. Unscrew the 3 10mm bolts holding on the airbag. Hold it out of the way while you remove the rest of the vapor barrier. Once the barrier is removed, screw the airbag unit back in with just one of the 10mm bolts to support it while you work on the window.



Make sure the window is in the proper position where you can see the 2 E7 External Torx bolts you will need to remove/loosen to take the glass out. It needs to be about 25% from completely up.

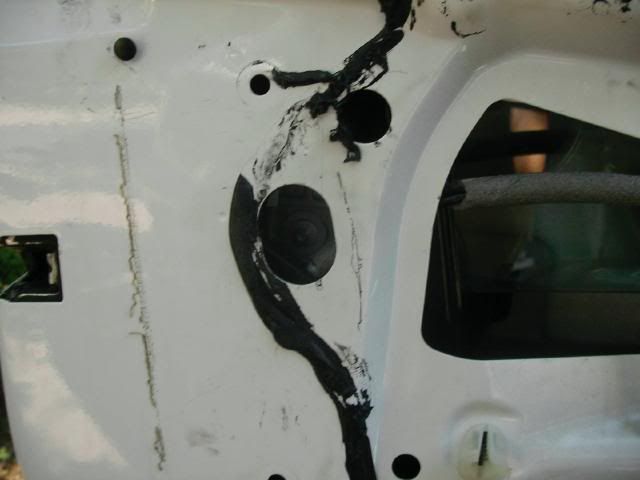

Outer Edge, you can see the bolt thru the hole in the door frame.


Inner edge, it will be just above the motor


If your window is stuck mostly down like mine was, attempt to move it to the proper position by pushing up from the bottom of the glass while using the window switch to roll the window up like you normally would. This worked for me

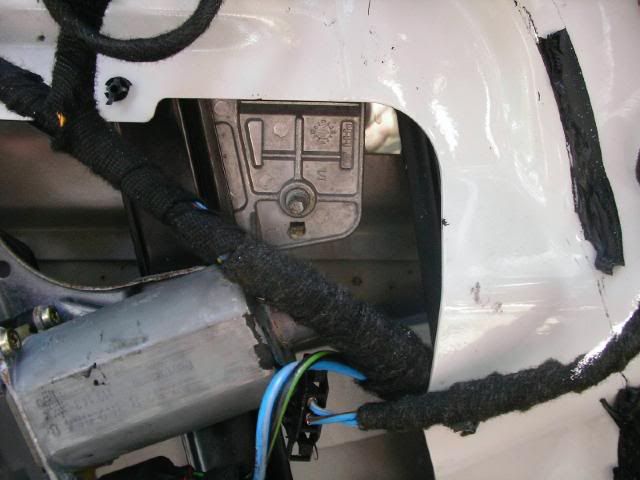

Disconnect the plug from the window motor by using a flathead to pry up the tab on the bottom of the clip. Unscrew the window motor - 3 T30 Torx screws - then rotate it counter-clockwise and pull it out. Set it aside.

Remove the outer chrome or black window trim. Use a flathead wrapped in a towel. Start from the outside edge of the door and slowly work inward towards the side mirror prying upward. Be careful not to kink the trim or anything, work slow. Once its mostly up evenly pull up and toward the outside edge of the door to get it out from under the side mirror. Now remove the inner trim the same way. Undo the rubber part on the outer edge of the door. There's one part held on by a small clip, the rubber will stretch around the clip and come off without removing the clip. Then work toward the inner part of the door pulling upwards on the trim.

Now, to remove the glass, loosen the inner E7 bolt but do not completely remove it. These are reverse thread, so left is tighten and right is loosen. You'll know its good when you can wiggle the glass. Go to the outer E7 bolt and remove it, you may have to put your hand in the door and push it from the back a little and jiggle the glass to help it out. Set that bolt aside. Now you are ready to take the glass out. To do this just pull up and out. You may find that it's catching on the outer end of the door, so put your hand in the door and push in on the regulator until it lets go of the bracket on the glass. Once it's out, set it aside.

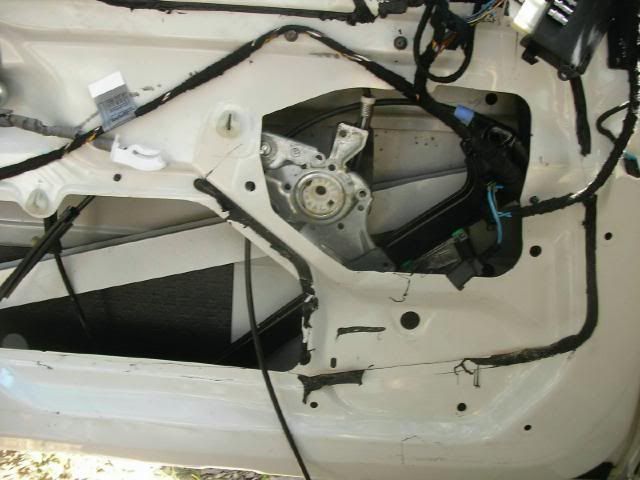

So you got the glass out, now for the regulator. 5 10mm nuts need to be removed. See pic.

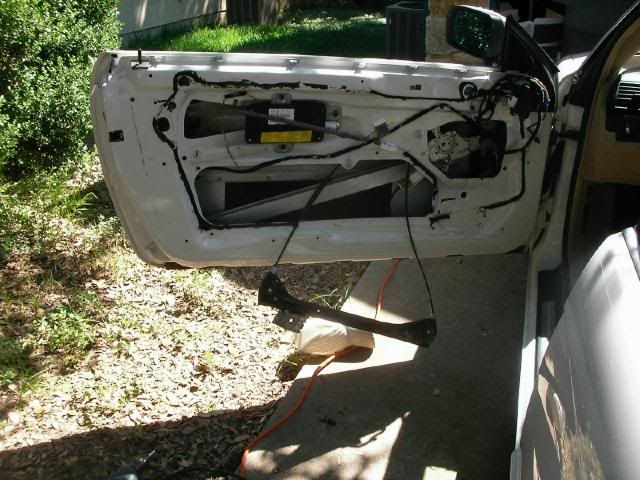

Then push all the regulator studs into the door so you can move the regulator around without hanging on anything. "Then you are going to take the bottom of the outer rail and bring it to the middle while bringing the top part down so that instead of being vertical it is horizontal near the bottom of the door. You can then pull that section out of the door."



Then do similar for the inner part, "bring the bottom toward the middle and the top down so that it is horizontal and pull it out."

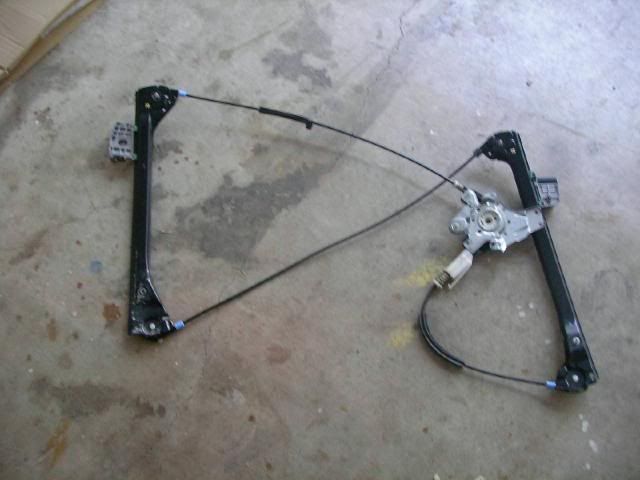

Here it is out



Now to put the new one in... make sure it is oriented correctly first so take notes on how your old one is in. Then lay it out the way it is supposed to go in prior to removing the old one. Put it in the door reverse of how you took the old one out, the big clumsy metal and gear side in first, then turn it up, then slide the other track side in then turn it up. Get the 5 studs back in the holes how they should be then put the nuts back on. I tighten everything hand tight then 1/4 turn with a rachet.

Now put the motor back on. Put the center gear in, you may have to wiggle it around a little to get it right, then once it pushes on turn it clockwise so the screw holes line up and screw it down. Plug it back in. Now check to make sure those E7 bolts on the window brackets are back where they should be so you can access them. Make sure the inner E7 bolt is loose so the glass will go in the bracket. You will have to re-use the outer E7 bolt you removed earlier. To get them back to the right position just roll the window up like normal with the switch till they're there.

Inner bracket - view from top


Outer bracket - view from top


Put the glass back in. Put the inner end in first making sure to line it up with the track on the side mirror, then slide it in and down making sure its on the inner bracket. Slowly lower it down until it seats properly. I had to put my hand in the door frame and move around the regulator until the outer bracket lined up with the glass properly and the glass dropped in place. Once it's in, thread in the outer bracket E7 bolt. Make sure its in right by pulling up on the glass, it shouldn't lift out. Tighten it down hand tight, then do the inner E7 bolt, once both are hand tight, give an extra 1/4 turn with a ratchet, don't forget it's glass.

Me pushing on the outer bracket


Test everything to make sure it's working.

From this point installation is reverse of removal. Put the inner window trim piece back on, then the outer, then vapor barrier, airbag, black box for side mirror, plug all that in. Bring the door panel over and plug everything into it, then clip it back on into place making sure to line up the clips on the sides, top, and bottom. And your done. Sound like a lot but it was all very straight forward and saved me a lot of money.

Here's a picture of my old one where it failed.


It was binding here and you can see how the cable is all frayed, causing the metallic string noise i was hearing. Then it just finally jammed up completely.


·
